How is different from Dune?

The title of this article captures the initial reaction many people have when they first learn about EVM Query Language (EQL). Although there are surface-level similarities between EQL and Dune, these two projects are fundamentally distinct in their goals, design, and use cases.

EQL and Dune serve distinct purposes: while Dune excels at data visualization and cross-chain querying, EQL is optimized for efficiently querying EVM chains using a simplified SQL-like syntax. EQL’s syntax is designed to be intuitive, making it easier for SQL users to adapt to, especially those familiar with querying blockchain data. While Dune provides more comprehensive data handling capabilities for larger datasets and complex queries, EQL outperforms Dune in tasks such as transaction lookups by hash and account state retrievals, particularly when working with smaller, more focused datasets. However, for large-scale queries involving multiple blocks or datasets, Dune’s robust infrastructure and caching mechanisms give it a performance edge.

Outlining the projects

Dune

Dune is a data analytics platform designed for querying and visualizing blockchain data, primarily focused on Ethereum and other related blockchains. It provides users with the ability to run SQL queries on publicly available on-chain data, making it possible to extract, analyze, and visualize information from these blockchains. Users interact with the data primarily through a SQL-based query engine that supports custom and predefined queries, enhanced by caching and parallel processing for performance. The platform offers interactive dashboards for visualization, supporting various chart types and dynamic filtering, and facilitates collaboration through public sharing and forking of dashboards.

EQL

EQL is a data extraction tool that offers users a SQL-like language to execute queries and retrieve data from EVM chains. The syntax is currently under active development to simplify access to on-chain data for researchers and developers. The ultimate objective of the project is to create a fully decentralized storage engine, enabling anyone to query EVM chains using a relational approach similar to SQL databases. Unlike Dune, EQL does not aim to index or decode various smart contracts and on-chain data.

How are the projects similar?

While EQL and Dune differ significantly in their design and long-term objectives, they do share several common features, particularly in their ability to extract and export blockchain data. Both platforms allow users to run queries that extract on-chain information, though the exact methods and formats differ.

In terms of data extraction, both Dune and EQL enable users to retrieve information from blockchain ecosystems using SQL-like query languages. Dune users write SQL queries to access data from various raw Ethereum tables, combining different datasets to obtain the desired insights. EQL, by contrast, offers a specialized SQL-like syntax tailored specifically to the Ethereum Virtual Machine (EVM), streamlining access to crucial blockchain data such as accounts, transactions, and balances. This specialization allows for more direct and efficient querying of on-chain data.

Both platforms also provide options for exporting query results, though they differ in terms of formats and pricing. Dune allows users to export query results directly through its interface, but this is limited to CSV format and only available with a paid plan. Free users must export data via API requests, which requires some additional technical steps. On the other hand, EQL, being open-source, offers greater flexibility and no cost barriers. Users can export data in a variety of formats, including JSON, CSV, and Parquet, without any restrictions, making it a more flexible and accessible option for developers and researchers.

In summary, while Dune and EQL differ in their broader goals and the scope of their query languages, they share important functionalities in data extraction and export capabilities. Dune excels in user-friendly visualization and cross-chain functionality, while EQL stands out for its flexible query syntax and free access to multiple export formats, appealing to users with a more technical or development-oriented focus.

How are the projects different?

As mentioned above, Dune is a platform focused on efficient querying and data visualization. In terms of storage, the platform uses a fork of Trino as its query engine, which supports Ethereum types natively, such as addresses and transaction hashes. Trino is a query engine where the execution layer is decoupled from the storage layer. Unlike traditional SQL databases, where query execution and storage are built into a monolithic system, Trino is well-suited for distributing both processing and storage across a cluster of servers. As a result, scaling the number of nodes also increases the amount of data the platform can process in parallel. The Trino syntax is similar to regular the regular SQL syntax used by most of the relational databases such as MySql and Postgres.

Although EQL’s long-term goal is to develop its own storage engine to efficiently distribute Ethereum data across the network and enable efficient P2P relational queries, the project currently relies on JSON-RPC providers as the “storage engine.” The downside is that EQL cannot process large numbers of blocks in a single request due to the rate limits imposed by public RPC providers, which on an average, using public RPCs, queries can process ~200 blocks, accounts, and transactions in a single query. However, there is a workaround for this limitation in development. EQL provides a SQL-like syntax that leverages the predictable relationships between key Ethereum entities—blocks, accounts, transactions, and logs—to create a more direct way of querying on-chain data. One example of how this syntax can be more efficient compared to SQL syntax—which is designed to handle all types of table relationships—is a simple query to fetch account information. For instance, let’s examine how to retrieve the nonce and address of Vitalik’s account using Dune and Trino’s SQL syntax:

WITH account_balance as (
    SELECT balance
    FROM tokens_ethereum.balances_daily as b
    WHERE b.address = 0xd8dA6BF26964aF9D7eEd9e03E53415D37aA96045
    AND token_standard = 'native'
    ORDER BY b.day DESC
    LIMIT 1
),
account_nonce as (
    SELECT nonce
    FROM ethereum.transactions t
    WHERE t."from" = 0xd8dA6BF26964aF9D7eEd9e03E53415D37aA96045
    ORDER BY t.block_number DESC
    LIMIT 1
),
account as (
    SELECT nonce, balance FROM account_nonce, account_balance
)
SELECT * FROM account

Trino syntax to fetch and account’s nonce and balance

The query above needs to retrieve data from two different tables, transactions and balances_daily, and join them into a single record to return the desired information. This is necessary because Dune does not provide a table that contains account data directly, requiring us to combine data from these two sources to obtain the information we need.

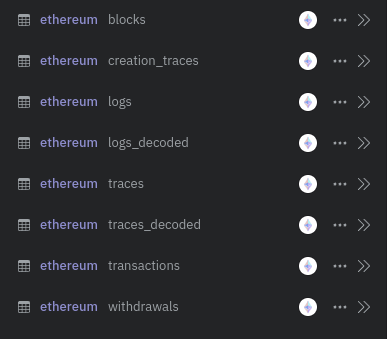

Available “raw” Ethereum tables

Unlike SQL, which must accommodate a wide range of use cases, EQL is specifically designed for EVM blockchains. As a result, it offers first-class support for queries like the one mentioned above.

GET nonce, balance
FROM account 0xd8dA6BF26964aF9D7eEd9e03E53415D37aA96045
ON eth

EQL syntax to fetch and account’s nonce and balance

It also offers first-class support for ENS, which in Trino would require an additional SELECT from another table. Moreover, EQL allows you to fetch all the related to an account, including code, address, nonce, and balance — a process that would otherwise require separate queries in Trino.

# EQL
GET *
FROM account vitalik.eth
ON eth


| nonce | balance | address | code |
| ----- | ------- | ------- | ---- |
| 1320  | 1231... | 0xd7... | 0x   |

##############################################

# Dune
WITH account_address AS (
    SELECT address
    FROM ens.reverse_latest
    WHERE name = 'vitalik.eth'
    ORDER BY latest_tx_block_time DESC
    LIMIT 1
)
SELECT
    a.address,
    COALESCE(t.nonce, 0) AS nonce,
    COALESCE(b.balance, 0) AS balance
FROM account_address a
LEFT JOIN (
    SELECT MAX(nonce) as nonce, "from" as address
    FROM ethereum.transactions
    GROUP BY "from"
) t ON t.address = a.address
LEFT JOIN (
    SELECT balance, address
    FROM tokens_ethereum.balances_daily
    WHERE token_standard = 'native'
    AND day = current_date
) b ON b.address = a.address;

In contrast, Dune and EQL diverge in several key aspects. Dune is a comprehensive platform that emphasizes data visualization and user collaboration, making it an ideal tool for analysts and researchers looking to query and visualize data from multiple blockchains, not limited to the Ethereum ecosystem. Its use of Trino as a query engine, along with interactive dashboards, allows users to handle complex queries and create rich visual reports. EQL, on the other hand, is specialized on querying EVM blockchains with a simplified, domain-specific syntax. It is designed to be lightweight, free, and open-source, with a goal of decentralizing data access. Unlike Dune, which focuses on visualizations and user interfaces, EQL operates more like a language/REPL, specializing in efficient blockchain data extraction and flexible data exports. EQL is designed for querying Ethereum-based data in a direct way but lacks the broader ecosystem of tools and integrations that Dune offers. As the EQL ecosystem grows, there is an opportunity for developers to contribute by building tools and interfaces that enhance its functionality and usability.

When should you use EQL over Dune

• Quick exploration of data
• Quickly check Ethereum state
• Check data about one or many accounts
• Query different objects that can’t be cached

Benchmarks

Dune offers an extensive range of datasets for users to build and customize their queries, allowing flexible data cross-referencing. However, for the purpose of these benchmarks, we are specifically focusing on the common elements between EQL and Dune, which include core Ethereum components such as blocks, transactions, accounts, and logs (traces soon™).

In this section, we’ll compare the types of queries that both Dune and EQL enable.

Test Environment

The tests were performed on a system with the following specifications:

• Processor: Ryzen 9 5900x
• RAM: 16GB HyperX Fury (Dual Channel)
• Storage: 1TB Kingston NV2 M.2 2280 SSD
• Internet Connection: 300 Mbps

Testing Methodology

For each platform, ten query executions were collected to gather performance metrics. While executing a larger number of queries, such as one hundred, would provide more comprehensive data, the manual method employed to collect Dune metrics made expanding the number of records impractical and unproductive. Although Dune offers an API for fetching data from endpoints, it only returns data from the most recent execution of a specified query. This behavior effectively caches the last result, undermining the ability to perform a meaningful comparison between the performance of EQL and Dune.

Consequently, Dune queries were executed directly through the application’s web user interface without any caching mechanisms or materialization configurations. The metrics were gathered solely based on the data provided by the app. In contrast, EQL metrics were collected using the eql_core Rust crate. The eql function within this crate was utilized to execute queries by passing them as parameters and retrieving the results. To ensure accurate and reliable performance measurements, the Criterion benchmarking library was employed to collect and analyze the metrics.

Dune offers three query engine options: Free, Medium, and Large. The Free engine is the slowest but has no cost. The Medium engine costs 10 credits per query, with a monthly limit of 2,500 credits. The Large engine, which requires a subscription, provides 25,000 monthly credits. It costs 20 credits per query and is priced at $349 per month, billed annually. The tests collected data separately from both the Free and Medium plans, as these plans are offered at no cost. This allows for a fair comparison, since EQL is also a free option for querying on-chain data.

Testing Conditions and Considerations

These tests were conducted as of 2024-09-21. It is essential to acknowledge that Dune’s performance may vary during peak usage times, similar to other web applications. Such fluctuations could affect the consistency of the results. If any of the outcomes appear to deviate significantly from the expected average performance, it is recommended to rerun the tests to verify their accuracy and ensure the reliability of the comparative analysis. EQL’s performance is influenced by several factors, including processing power, network conditions, and the efficiency of Remote Procedure Calls (RPC). Ensuring optimal conditions in these areas is crucial for achieving the best possible performance outcomes with EQL.

The tests

• Account State Fetch: Nonce and Balance
• Transaction Lookup by Hash: 100 Transactions
• Event Log Fetch: USDC Transfers in 100 Block Range
• Block Range Fetch: 100 Blocks
• Sequential Block Fetch: 100 Blocks Individually

Account State Fetch: Nonce and Balance

Queries:

# Dune
WITH account_balance as (
    SELECT balance
    FROM tokens_ethereum.balances_daily as b
    WHERE b.address = 0xc71048d303920c73c29705192393c567ac4e6c67
    AND token_standard = 'native'
    ORDER BY b.day DESC
    LIMIT 1
),
account_nonce as (
    SELECT nonce
    FROM ethereum.transactions t
    WHERE t."from" = 0xc71048d303920c73c29705192393c567ac4e6c67
    ORDER BY t.block_number DESC
    LIMIT 1
),
account as (
    SELECT nonce, balance FROM account_nonce, account_balance
)
SELECT * FROM account

##############################################

#EQL
GET nonce, balance
FROM account 0xc71048d303920c73c29705192393c567ac4e6c67
ON eth

Performance:

	EQL	Dune Free	Dune Medium
Mean	939.03 ms	48.99 s	3.81 min
Median	904.04 ms	40.87 s	2.64 min
Std. Dev.	93.925 ms	18.46 s	3.14 min

Analysis:

• EQL vastly outperforms both Dune tiers, completing queries in under a second.
• Dune Free and Dune Medium take significantly longer, with execution times ranging from nearly a minute to several minutes.
• High standard deviations for Dune indicate inconsistent performance.

Conclusion:

• For account state fetching, EQL is dramatically faster and more reliable.
• Dune may not be practical for time-sensitive applications requiring account state data.

Transaction Lookup by Hash: 100 Transactions

# Dune
SELECT *
FROM ethereum.transactions t
WHERE t.hash
IN (
	0xfffc07e7ff65a5ff7f8496042f85fc4e1d6bd29e012e776b970f4414c07d4d41,
	...
)

##############################################

# EQL
GET *
FROM tx
0xfffc07e7ff65a5ff7f8496042f85fc4e1d6bd29e012e776b970f4414c07d4d41,
...
ON eth

Performance:

	EQL	Dune Free	Dune Medium
Mean	1.14 s	7.93 s	30.05 s
Median	1.08 s	4.09 s	26.84 s
Std. Dev.	142.24 ms	8.13 s	18.33 s

Analysis:

• EQL significantly outperforms both Dune tiers.
• Dune Medium is the slowest, with a mean time almost 30 times that of EQL.
• Standard deviation for EQL is much lower, indicating consistent performance.

Conclusion:

• EQL is the superior choice for transaction lookups by hash, offering much faster and more consistent execution times.

Event Log Fetch: USDC Transfers in 100 Block Range

Queries:

# Dune
SELECT *
FROM ethereum.logs l
WHERE l.contract_address=0xdAC17F958D2ee523a2206206994597C13D831ec7
AND l.topic0=0xddf252ad1be2c89b69c2b068fc378daa952ba7f163c4a11628f55a4df523b3ef
AND l.block_number BETWEEN 4638657 AND 4638758

##############################################

# EQL
GET *
FROM log
WHERE
block 4638657:4638758,
address 0xdAC17F958D2ee523a2206206994597C13D831ec7,
topic0 0xcb8241adb0c3fdb35b70c24ce35c5eb0c17af7431c99f827d44a445ca624176a
ON eth

Performance:

	EQL	Dune Free	Dune Medium
Mean	344.1 ms	436.6 ms	759.2 ms
Median	339.6 ms	246.5 ms	472.4 ms
Std. Dev.	20.2 ms	58.1 ms	916.2 ms

Analysis:

• EQL has the lowest mean and standard deviation, indicating both speed and consistency.
• Dune Free has a lower median time than EQL but higher mean and standard deviation.
• Dune Medium shows high variability, as indicated by a high standard deviation.

Conclusion:

• EQL provides the best overall performance for event log fetching.
• Dune Free is competitive in median time but less consistent.

Block Range Fetch: 100 Blocks

Queries:

# Dune
SELECT * FROM ethereum.blocks b WHERE b.number BETWEEN 1 AND 100

##############################################

# EQL
GET * FROM block 1:100 ON eth

Performance:

	EQL	Dune Free	Dune Medium
Mean	813.6 ms	218.9 ms	544.8 ms
Median	776.6 ms	208.9 ms	432.4 ms
Std. Dev.	130.2 ms	43.9 ms	41.0 ms

Analysis:

• Dune Free is the fastest, with both the lowest mean and median execution times.
• EQL is the slowest in this category.
• Standard deviation is lowest for Dune Free, indicating consistent performance.

Conclusion:

• For fetching a range of blocks, Dune Free offers the best performance.
• EQL may not be the optimal choice for this specific query type.

Sequential Block Fetch: 100 Blocks Individually

Queries:

# Dune
SELECT * FROM ethereum.blocks b WHERE b.number IN (1, 2, 3, ..., 100)

##############################################

# EQL
GET * FROM block 1,2,3,...,100 ON eth

Performance:

	EQL	Dune Free	Dune Medium
Mean	804.8 ms	313.0 ms	259.3 ms
Median	107.7 ms	214.0 ms	243.4 ms
Std. Dev.	775.6 ms	317.2 ms	129.9 ms

Analysis:

• EQL has the lowest median time but the highest standard deviation, indicating inconsistent performance.
• Dune Medium has the lowest mean time and a relatively low standard deviation.
• Dune Free performs in between the other two.

Conclusion:

• Dune Medium offers the most consistent and fastest average performance.
• While EQL can be faster in some instances (as indicated by the median), its high variability might affect reliability.

Benchmark analysis

EQL outperforms Dune in transaction lookups by hash, account state retrievals, and event log fetches, offering faster and more consistent performance across these query types. It also shows more reliable execution times with lower variability, making it a better choice for users requiring predictability.

Dune Free excels in block range fetches, particularly when scanning 100 blocks. Its infrastructure seems optimized for this type of query, making it more efficient than both EQL and Dune Medium. Despite being a free tier, it consistently outperforms the paid Dune Medium option in this area.

Dune Medium, despite being a larger query engine, shows high variability and does not offer better performance than Dune Free in block range queries. Its inconsistency across event log fetches and account state queries limits its reliability.

The unexpected performance gap between Dune Free and Dune Medium in block fetches remains unexplained.

Final thoughts

EQL and Dune both allow users to query blockchain data, but they serve different needs. EQL uses a simple, SQL-like syntax tailored for EVM chains, making it easy for developers to query Ethereum data quickly. It’s ideal for exploring Ethereum state, checking accounts, and querying objects that can’t be cached. EQL outperforms Dune in tasks like transaction lookups and account state queries, offering faster execution and free access to multiple export formats.

Dune, by contrast, is better for processing large datasets and handling complex queries across multiple blockchains. It offers advanced data visualization, interactive dashboards, and collaboration features, making it ideal for analysts and researchers. Dune uses traditional SQL and Trino, allowing for familiar query operations.

Currently, EQL has limits with handling large datasets due to its reliance on JSON-RPC providers, but improvements are underway. Benchmark tests show EQL excels at specific tasks like transaction lookups, while Dune is faster in block range queries thanks to its infrastructure and caching.

Use EQL for quick, efficient EVM blockchain queries, or choose Dune for robust data processing, visualization, and cross-chain functionality. Both platforms have unique strengths, so the right choice depends on your specific use case.

If you’re interested in exploring EQL further, you can try it out through our web-REPL, check out the GitHub repo for ongoing updates, or join the conversation on Discord to connect with others and share ideas.
